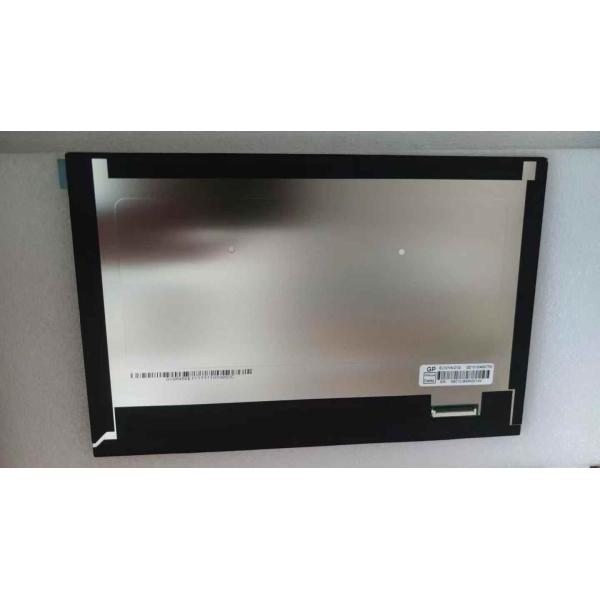

Innolux 10.1inch LCD Panel EJ101IA-01G TFT-LCD Display with 1280x800 Pixels and 550 cd/m² Brightness

Product Categories
FOCUS VISION TECHNOLOGY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Innolux 10.1inch LCD Panel EJ101IA-01G TFT-LCD Display with 1280x800 Pixels and 550 cd/m² Brightness

  • 1
  • 2
  • 3

Brand Name : Innolux

Model Number : EJ101IA-01G

Certification : Rohs,CE,FCC

Place of Origin : China

MOQ : 10pcs

Price : Negotiation

Payment Terms : T/T,W,Western Union,MoneyGram

Supply Ability : 3000pcs per week

Delivery Time : 4-5 working day

Packaging Details : Industrial packing

Quality : Brand new Original

Package : Original industrial packing

resolution : 1280*800 ixels

style : lcm

brightness : 550 CCD M2

color : 16.7M

contrast ratio : 1000 :1

working life : 15K Hours

screen size : 10.1inch

Contact Now

Innolux 10.1-inch Tablet LCD Panel EJ101IA-01G
The Innolux EJ101IA-01G is a 10.1-inch diagonal a-Si TFT-LCD display panel designed for tablet applications. This high-quality display features 1280*800 WXGA resolution with 149 PPI pixel density, delivering sharp, clear visuals with excellent color reproduction.
Key Features
  • 10.1-inch diagonal display with 1280*800 resolution
  • 149 PPI for sharp, detailed images
  • IPS technology with wide viewing angles
  • High brightness of 550 cd/m²
  • 1000:1 contrast ratio
  • WLED backlight with 15,000-hour lifespan
  • 40-pin LVDS interface
  • Hard coating treatment for durability
Technical Specifications
Model NumberEJ101IA-01G
Panel Typea-Si TFT-LCD, LCM
Resolution1280(RGB)*800 (WXGA)
Pixel Density149 PPI
Active Area216.96*135.6 mm
Outline Dimensions229.46*149.1*4.66 mm
Luminance550 cd/m² (Typical)
Contrast Ratio1000:1 (Typical)
Viewing Angle85/85/85/85 (Left/Right/Up/Down)
Response Time10/15 ms (Tr/Td)
Color Depth16.7 million colors
Color Gamut50% NTSC
InterfaceLVDS (1 channel, 8-bit)
Connector40-pin
Operating Temperature-10°C to 60°C
Storage Temperature-20°C to 70°C
Weight183g (Typical)
Application
This display panel is specifically designed for tablet and pad applications, offering reliable performance and excellent visual quality for mobile computing devices.
Note: Production status information is for reference only. For the latest production details and specifications, please contact Innolux or their authorized distributors.
Innolux 10.1inch LCD Panel EJ101IA-01G TFT-LCD Display with 1280x800 Pixels and 550 cd/m² Brightness Innolux 10.1inch LCD Panel EJ101IA-01G TFT-LCD Display with 1280x800 Pixels and 550 cd/m² Brightness
